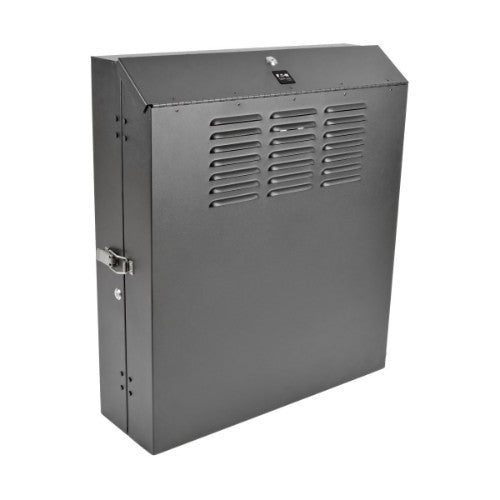

SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
Key Features
- Maximum load capacity of 150 lbs (68 kgs)
- Locking steel cabinet vented to keep equipment cool
- Secures 6U of 19 in. rack equipment up to 20 in. deep
- Includes additional 2U of space for patch panels
- Ships fully assembled for quick installation
Description
The SRWF6U SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lbs (68 kgs).

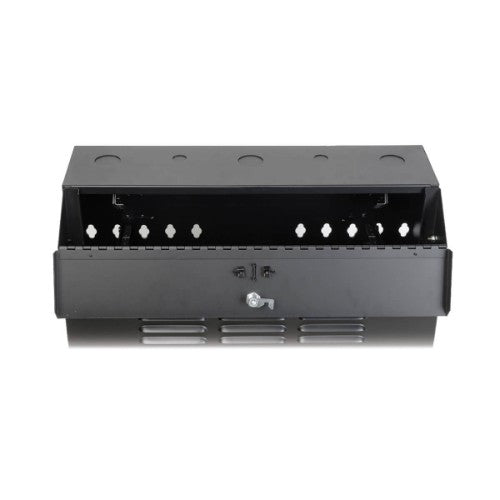

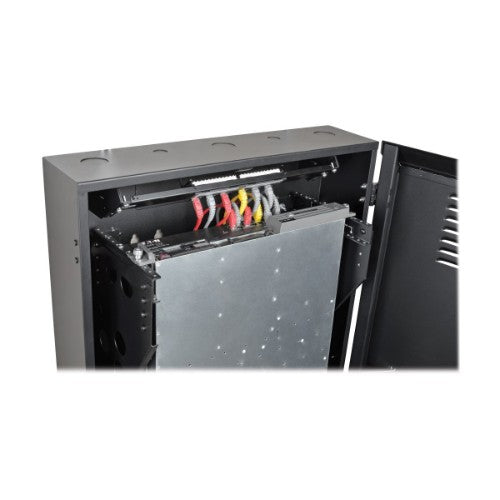

Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

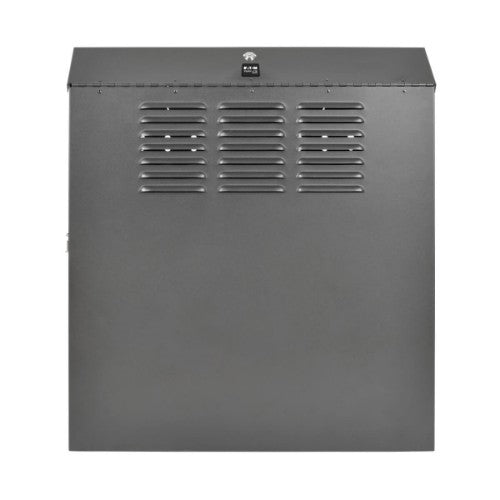

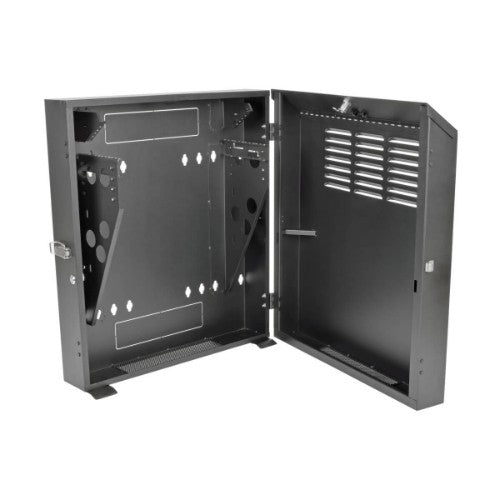

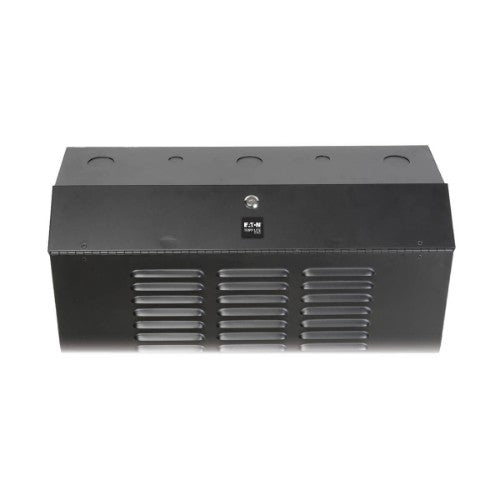

The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.

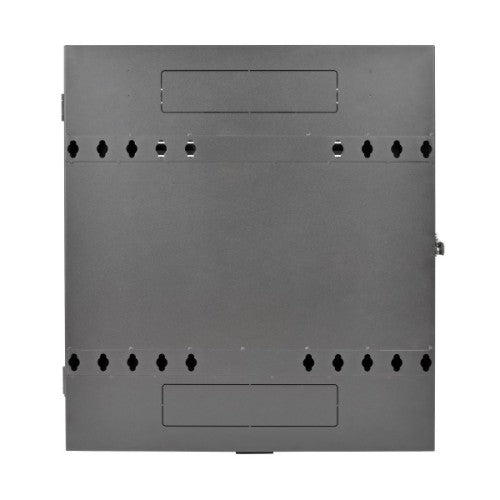

The SRWF6U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Specifications
| Features |
|---|
| Certification |
EIA-310-E |
| Size (imperial) |
19" |
| Rack capacity |
6U |
| Maximum weight capacity |
149.9 lbs (68 kg) |
| Product colour |
Black |
| Harmonized System (HS) code |
8517.79.0000 |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Package width |
31.1" (789.9 mm) |
| Package height |
34.3" (870 mm) |
| Package depth |
16.9" (430 mm) |
| Package weight |
70.5 lbs (32 kg) |
| Width |
25.6" (650.2 mm) |
| Weight |
63.9 lbs (29 kg) |
| Size (imperial) |
19" |
| Height |
28.8" (731.5 mm) |
| Depth |
11.5" (292.1 mm) |
| Maximum weight capacity |
149.9 lbs (68 kg) |
| Packaging data |
|---|
| Package width |
31.1" (789.9 mm) |
| Package height |
34.3" (870 mm) |
| Package depth |
16.9" (430 mm) |
| Package weight |
70.5 lbs (32 kg) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting kit |
Yes |
| Technical details |
|---|
| Size (imperial) |
19" |
| Rack capacity |
6U |
| Products per pallet |
1 pc(s) |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
31.1" (789.9 mm) |
| Master (outer) case length |
16.9" (430 mm) |
| Master (outer) case height |
34.3" (870 mm) |
| Master (outer) case gross weight |
70.5 lbs (32 kg) |
| Products per master (outer) case |
1 pc(s) |
| Products per pallet |
1 pc(s) |
| Harmonized System (HS) code |
8517.79.0000 |
| Other features |
|---|
| Products per pallet |
1 pc(s) |
