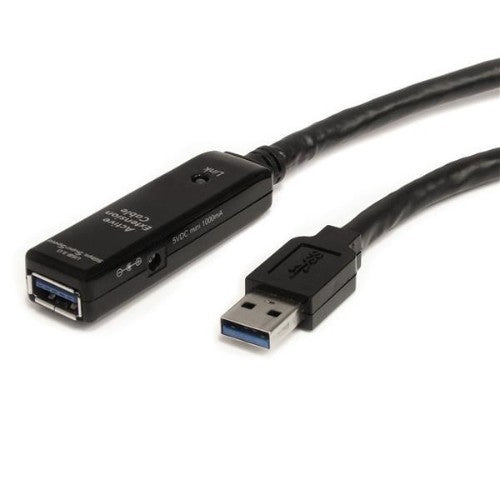

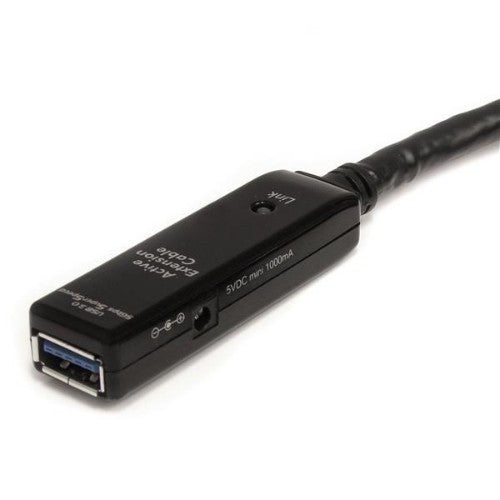

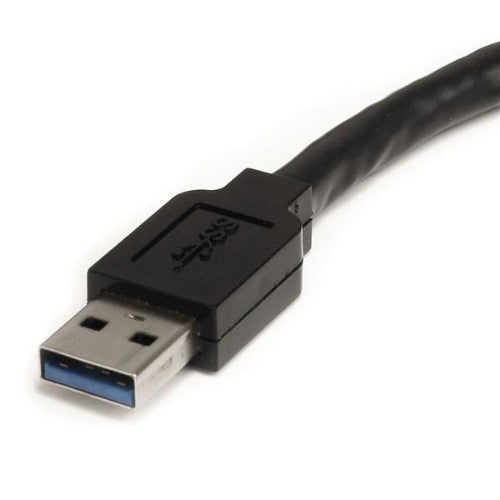

StarTech.com 5m USB 3.0 Active Extension Cable - M/F
Description
Extend the distance between a computer and a USB 3.2 Gen1 device by an additional 5 meters
The USB3AAEXT5M, 5-meter Active USB 3.2 Gen 1 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.2 Gen 1 devices of up to 5-meters (16-feet).

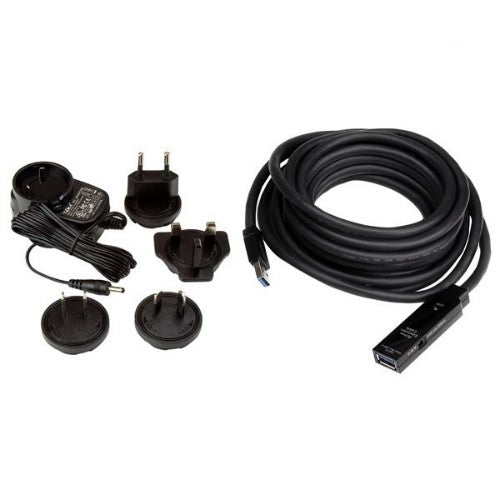

An all in one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.2 Gen 1 extension cable incorporates bus powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 4 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable.
The USB3AAEXT5M extension cable (USB Extender) supports high speed USB 3.2 Gen 1 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Cable length |
196.9" (5 m) |
| Connector contacts plating |
Nickel |
| Product colour |
Black |
| Certification |
CE, FCC, REACH |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current (max) |
2 A |
| Input current (max) |
0.35 A |
| Weight |
8.82 oz (250 g) |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current (max) |
2 A |
| Input current (max) |
0.35 A |
| Weight & dimensions |
|---|
| Cable length |
196.9" (5 m) |
| Weight |
8.82 oz (250 g) |
| Package width |
5.79" (147 mm) |
| Package depth |
8.98" (228 mm) |
| Package height |
2.05" (52 mm) |
| Package weight |
16.2 oz (460 g) |
| Packaging data |
|---|
| Package width |
5.79" (147 mm) |
| Package depth |
8.98" (228 mm) |
| Package height |
2.05" (52 mm) |
| Package weight |
16.2 oz (460 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
|---|
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Connector contacts plating |
Nickel |
| Technical details |
|---|
| Product colour |
Black |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
