USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft
Description

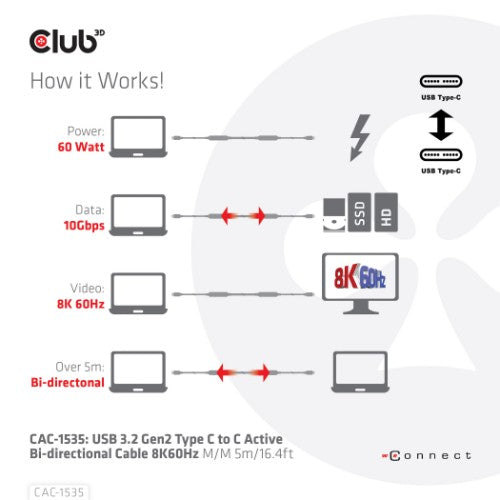

The Club 3D CAC-1535 is an USB Type C to USB Type C Bi-directional Active Cable with a Re-timer chipset for enhancing Video, Data and Power that reaches up to 5 meters / 16.40ft . For video its compatible with DP1.4 standards with a theoretical resolution of up to 8K@60Hz. For data it is compatible with USB3.2 Gen 2 with a maximum of 10Gbps of data transmission and for power it is capable of delivering a max of 60W (20V/3A) PD Charging.

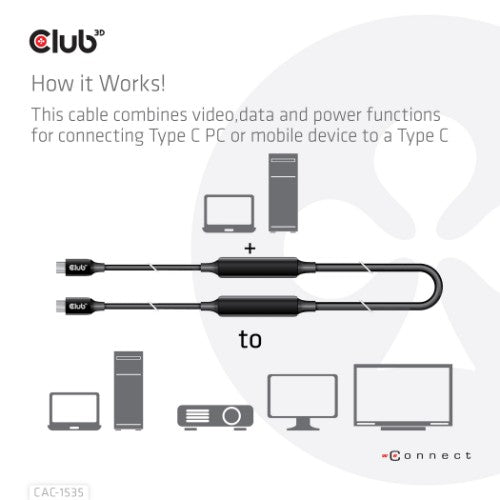

This cable combines video,data and power functions for connecting USB Type C PC or mobile device to a USB Type C display/VR/HardDrive/
Dock/PD charger. In addition this cable is bidirectional which makes it
simple to use. Please make sure that the devices connected support DisplayPort™ Alt Mode Functions.
Note: It works with devices that support DisplayPort Alt mode 1.4, its downwards compatible, specification is limited to devices capability.
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Cable length |
196.9" (5 m) |
| Maximum data transfer rate |
10000 Mbit/s |
| Product colour |
Black |
| Certification |
ROHS, FCC, CE EMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
60 W |
| Maximum data transfer rate |
10 Gbit/s |
| Output voltage |
20 V |
| Output current (max) |
3 A |
| Weight |
9.95 oz (282 g) |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Output voltage |
20 V |
| Output current (max) |
3 A |
| Weight & dimensions |
|---|
| Cable length |
196.9" (5 m) |
| Weight |
9.95 oz (282 g) |

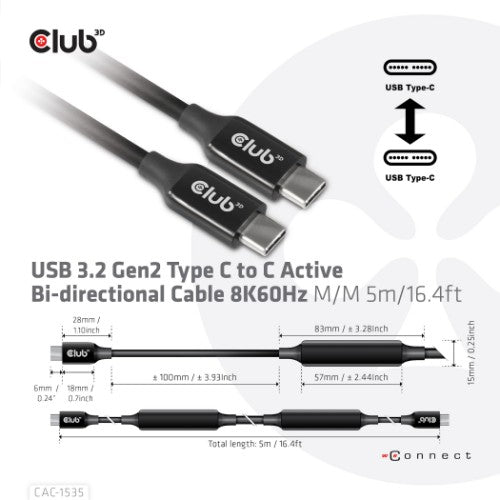

| Connector 1 dimensions (WxDxH) |
0.492 x 1.1 x 0.315" (12.5 x 28 x 8 mm) |
| Connector 2 dimensions (WxDxH) |
0.492 x 1.1 x 0.315" (12.5 x 28 x 8 mm) |
| Package width |
8.27" (210 mm) |
| Package depth |
1.38" (35 mm) |
| Package height |
8.27" (210 mm) |
| Package weight |
12.8 oz (362 g) |
| Package type |
Box |
| Packaging data |
|---|
| Package width |
8.27" (210 mm) |
| Package depth |
1.38" (35 mm) |
| Package height |
8.27" (210 mm) |
| Package weight |
12.8 oz (362 g) |
| Package type |
Box |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
|---|
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Data transmission |
|---|
| Maximum data transfer rate |
10000 Mbit/s |
| Technical details |
|---|
| Product colour |
Black |
| Harmonized System (HS) code |
8544 4290 |
| Plastic packaging weight |
0.317 oz (9 g) |
| Certificates |
|---|
| Certification |
ROHS, FCC, CE EMI |
| Packaging composition |
|---|
| Plastic packaging weight |
0.317 oz (9 g) |
| Paper/cardboard packaging weight |
2.47 oz (70 g) |
| Total plastic packaging weight |
0 oz (0 g) |
| Total paper/cardboard packaging weight |
0 oz (0 g) |
| Other features |
|---|
| Package type |
Box |
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
8544 4290 |
