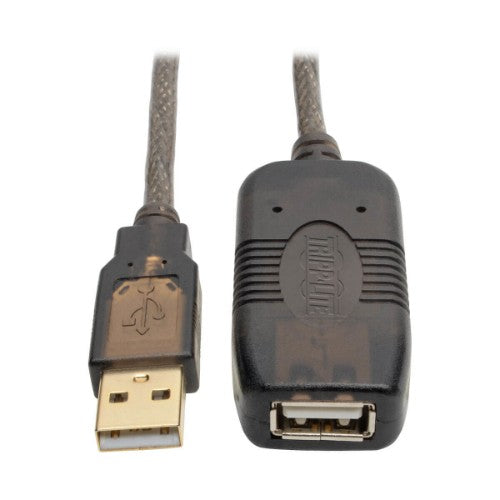

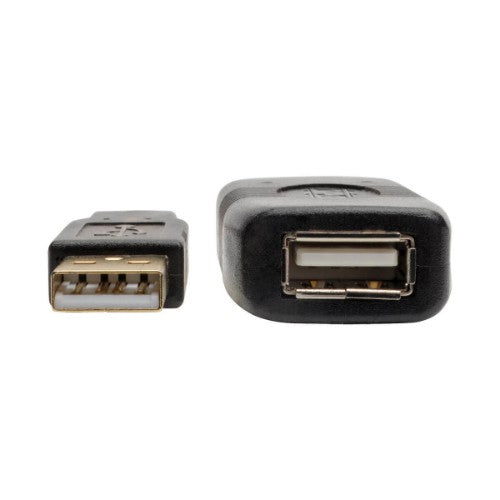

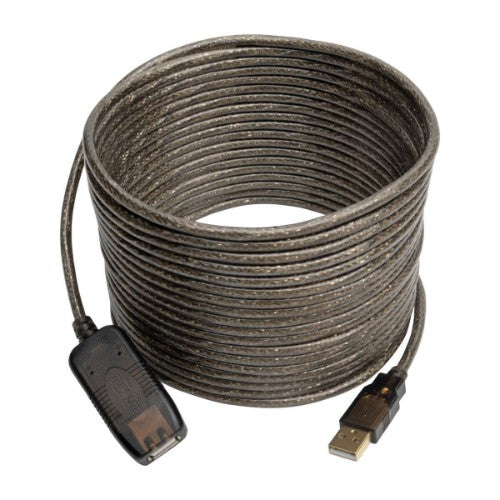

USB 2.0 Active Extension Repeater Cable (A M/F), 25 ft. (7.62 m)
Key Features
- Allows a device to be located up to 41-ft. (12.49 m) from the source
- Supports USB 2.0 data transfer rates up to 480 Mbps
- Premium foil and braid shielding protects against EMI/RFI line noise
- Delivers up to 150mA of power to connected device
- Daisy-chain up to 5 cables for maximum 141-ft. (42.97 m) distance
Description
The U026-025 USB 2.0 Hi-Speed Active Extension Cable (M/F) increases the length of a device cable an additional 25 feet (7.6 meters) with no danger of signal loss or decrease in performance. Connect the male plug to a USB port on your computer or hub and the female end to a USB device cable. A built-in bus-powered signal booster ensures peak USB 2.0 signal quality. Backward compatible with previous USB generations, this active USB extension cable supports data transfer rates up to 480 Mbps.
The U026-025 works with all computers, devices and cables with USB-A connectors, and provides up to 150mA of power to the connected device. An external power supply or powered USB 2.0 hub is necessary if the connected device requires more than 150mA.
Premium foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Molded gold-plated connectors with corrosion-resistant gold-plated contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
Specifications
| Features |
|---|
| Connector gender |
Male/Female |
| Country of origin |
China |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Cable length |
300" (7.62 m) |
| Connector contacts plating |
Nickel/Gold |
| Magnetically shielded |
Yes |
| Maximum data transfer rate |
480 Mbit/s |
| Product colour |
Black |
| Certification |
CE, FCC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Maximum data transfer rate |
0.48 Gbit/s |
| Weight & dimensions |
|---|
| Cable length |
300" (7.62 m) |
| Package width |
9" (228.6 mm) |
| Package depth |
10.5" (266.7 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
12.7 oz (360 g) |
| Package type |
Polybag |
| Packaging data |
|---|
| Package width |
9" (228.6 mm) |
| Package depth |
10.5" (266.7 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
12.7 oz (360 g) |
| Package type |
Polybag |
| Ports & interfaces |
|---|
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Connector contacts plating |
Nickel/Gold |
| Data transmission |
|---|
| Maximum data transfer rate |
480 Mbit/s |
| Technical details |
|---|
| Magnetically shielded |
Yes |
| Product colour |
Black |
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Package type |
Polybag |
| Product colour |
Black |
| Master (outer) case GTIN (EAN/UPC) |
10037332206937 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case gross weight |
3.7 lbs (1.68 kg) |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case width |
13.7" (348 mm) |
| Master (outer) case length |
15.7" (400 mm) |
| Master (outer) case height |
1" (25.4 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332206937 |
| Harmonized System (HS) code |
84733080 |
